Detail:

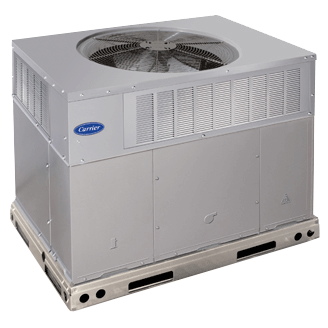

This system manages energy use in the winter by selecting the best heating source for the conditions – a gas furnace or electric heat pump. During the cooling season, enjoy the benefits afforded by two-stage compression for enhanced dehumidification and comfort. All year long, it maintains your comfort mostly using low-stage operation to deliver consistent, quiet, high-efficiency temperature control.

Key features:

STANDARD

• Up to 15 SEER
• Up to 8.5 HSPF
• 81% AFUE
• Sound: as low as 71 decibels¹ in cooling mode
• Compressor and blower motor aided, enhanced summer dehumidification⁶
• Two-stage compressor  operation for excellent comfort and efficiency
• Multi-speed blower improves comfort and aids quiet operation
• Aluminized steel, Turbo-Tubular™ heat exchanger enhances heat transfer
• Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help insure reliable, efficient operation
• Fully insulated cabinet
• Air purifier, humidifier and ventilator compatible
• Non-ozone depleting Puron^® refrigerant
• Filter drier system protection from moisture and contaminants
• Corrosion-resistant inducer assembly with stainless steel shaft
• Envirotuff^™ rust-proof base with integrated drain
• 10-year parts limited warranty²
• 20-year heat exchanger limited warranty⁵

OPTIONAL

• Stainless steel heat exchanger with lifetime limited warranty³
• ArmorCoat^™ coil tin-plating for enhanced corrosion resistance
• Optional labor warranty available⁴

¹Quietest size within each model group during most common cooling operation condition. ² To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details. ³To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is 20-years on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details. ⁴ Ask your Carrier^® dealer for details. ⁵To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is 15-years on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details. ⁶Requires Performance^TM Edge^® relative humidity or ComfortZone^TM thermostat.

Specifications:

EFFICIENCY

• Up to 15 SEER
• 12 EER
• Up to 8.5 HSPF
• 81 AFUE
• All sizes meet ENERGY STAR^® qualifications¹

PERFORMANCE

• Compressor and blower motor enhanced summer dehumidification¹
• Consistent comfort and temperature control with two-stage operation
• Hybrid Heat^® system auto changeover to gas in colder temperatures
• Sound: as low as 71 decibels² in cooling mode

TECHNOLOGY

• Two-stage scroll compressor
• High-efficiency, multi-speed blower motor
• Turbo Tubular design heat exchanger
• Two-stage gas valve
• Electronic spark to pilot ignition
• System protecting high pressure and loss of charge switches
• Thermostatic Expansion Valve (TXV) refrigeration management
• Filter drier
• Recommended control: Performance Edge^® relative humidity or ComfortZone^™ II thermostat
• Optional ArmorCoat^TM tin-plating to enhance corrosion resistance

CAPACITIES

• 2-5 ton cooling
• 40,000-130,000 Btu/h heating

REQUIREMENTS

• 208-230 V

AESTHETICS

• Heavy-gauge, galvanized steel construction
• Steel, louvered coil guard

¹ Requires Performance^™ Edge^® relative humidity or ComfortZone^™ II thermostat ² Quietest size within each model group during most common cooling operation condition.
