Detail:

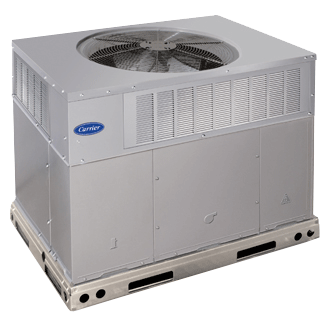

The Performance heat pump, with two-stage compressor, lets you enjoy smooth, consistent comfort, quieter operation and improved air flow all year long.

It’s an extra-efficient heat pump system that also utilizes a multi-speed blower to help achieve enhanced summer dehumidification.

Key features:

STANDARD

• Up to 15.5 SEER
• Up to 8.5 HSPF
• Sound: as low as 71 decibels¹ in cooling mode
• Blower motor aided, enhanced summer dehumidification
• Two-stage compressor operation
• Multi-speed blower improves comfort and aids quiet operation
• Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help insure reliable, efficient operation
• Fully insulated cabinet
• Air purifier, humidifier and ventilator compatible
• Non-ozone depleting Puron^® refrigerant
• Filter drier system protection from moisture and contaminants
• Envirotuff^™ rust-proof base with integrated drain
• 10-year parts limited warranty²

OPTIONAL

• Electrical-resistance heating packages available
• ArmorCoat^™ coil tin-plating for enhanced corrosion resistance
• Optional labor warranty available³

¹ Quietest size within each model group during most common cooling operation condition. ² To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details. ³ Ask your Carrier^® dealer for details.

Specifications:

EFFICIENCY

• Up to 15.5 SEER
• 12 EER
• Up to 8.5 HSPF
• All sizes meet ENERGY STAR^® qualifications

PERFORMANCE

• Compressor and blower motor enhanced summer dehumidification¹
• Consistent comfort and temperature control with two-stage operation
• Sound: as low as 71 decibels² in cooling mode

TECHNOLOGY

• Two-stage scroll compressor
• High-efficiency, multi-speed blower motor
• System protecting high pressure and loss of charge switches
• Thermostatic Expansion Valve (TXV) refrigeration management
• Filter drier
• Recommended control: Performance Edge^® relative humidity or ComfortZone^™ II thermostats
• Optional ArmorCoat^™ tin-plating to enhance corrosion resistance

CAPACITIES

• 2-5 ton

REQUIREMENTS

• 208-230 V

AESTHETICS

• Heavy-gauge, galvanized steel construction
• Steel, louvered coil guard

¹ Requires Performance^™ Edge^® relative humidity or ComfortZone^™ II thermostat ² Quietest size within each model group during most common cooling operation condition.

Published on March 18th, 2017
