Detail:

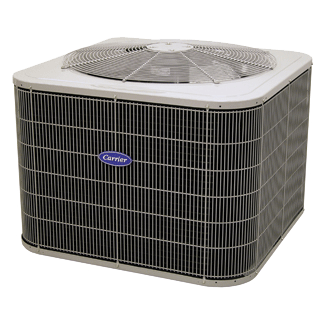

The Comfort series of air conditioners is designed to give you simple, efficient, affordable cooling. And with impressive SEER ratings they can still make you smile when it comes time to pay your energy bill.

This model meets the Department of Energy’s higher EER rating required to meet the Southwest region’s minimum efficiency. Your dealer can ensure that any model you choose meets your region’s standards

Key features:

STANDARD

• Up to 16 SEER cooling efficiency
• Sound: as low as 72 decibels¹
• Single-stage operation
• Filter drier system protection from moisture and contaminants
• WeatherArmor^™ protection
• Non-ozone depleting Puron^® refrigerant
• 10-year parts limited warranty²

OPTIONAL

• Optional labor warranty available³

¹ Quietest size within each model group during most common operating condition. ² To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details. ³ Ask your Carrier^® dealer for details.

Specifications:

EFFICIENCY

• Up to 16 SEER
• Up to 13 EER
• All sizes meet ENERGY STAR^® qualifications¹

PERFORMANCE

• Sound: as low as 72 decibels²

TECHNOLOGY

• Single-stage scroll compressor
• Filter drier
• Recommended control: Carrier^® Côr™ thermostat

CAPACITIES

• 1.5-5 ton

REQUIREMENTS

• 208-230 V

AESTHETICS

• Heavy-gauge, galvanized steel construction
• Baked-on, durable powder coat paint
• Wire coil guard

¹ Proper sizing and installation of equipment is critical to achieve optimal performance. Split system air conditioners and heat pumps must be matched with appropriate coil components to meet ENERGY STAR criteria. Ask your contractor for details or visit www.energystar.gov. ² Quietest size within each model group during most common operating condition.

Published on March 17th, 2017
