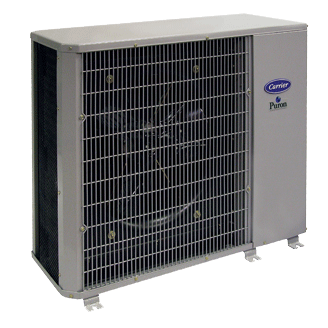

Performance™ 14 Heat Pump – 25HHA4


Carrier HVAC Products / Heating & Cooling / Heat pumps

Detail:

We’ve engineered this compact heat pump with durability, efficiency and your budget in mind. Its small footprint lets you install it as close as six inches from your home. It can alternatively be placed on a roof or stacked for use in multi-family housing.

This versatile heat pump can support a commercial, underceiling, ductless system and be used in conjunction with your home’s furnace for Hybrid Heat® system heating efficiency.

Key features:

STANDARD

  • Ultra compact for small spaces
  • Up to 14 SEER cooling efficiency
  • Up to 8.2 HSPF heating efficiency
  • Sound: as low as 69 decibels1
  • Single-stage compressor operation
  • Compressor sound blanket and built-in muffler
  • Filter drier system protection from moisture and contaminants
  • Non-ozone depleting Puron® refrigerant
  • 10-year parts limited warranty2

OPTIONAL

  • Optional labor warranty available3

1 Quietest size within each model group during most common cooling operating condition. 2 To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details. 3 Ask your Carrier® dealer for details.

Specifications:

EFFICIENCY

  • Up to 14 SEER
  • Up to 11.5 EER
  • Up to 8.2 HSPF

PERFORMANCE

  • Good cold weather performance
  • Hybrid Heat® system compatible when paired with select thermostats
  • Sound: as low as 69 decibels1

TECHNOLOGY

  • Single-stage scroll compressor
  • System protecting high pressure and loss of charge switches
  • Sound reduction: compressor sound blanket and built-in muffler
  • Filter drier
  • Recommended controls: Carrier® Côr™ thermostat

CAPACITIES

  • 1.5-5 ton

REQUIREMENTS

  • 208-230 V

AESTHETICS

  • Heavy-gauge, galvanized steel construction
  • Baked-on, durable powder coat paint
  • Heavy-duty, wire fan guard

1Quietest size within each model group during most common operating condition.
